VyomaTrack
Advanced RFID & IoT-Enabled Asset Tracking Ecosystem
Main Features
VyomaTrack is a sophisticated RFID and IoT-enabled ecosystem designed to automate asset tracking and inventory control.
Advanced Bulk Scanning
Rapidly processes hundreds of items per second without requiring a line-of-sight, allowing for the scanning of entire pallets through packaging or walls.
Real-Time Global Visibility
Provides continuous tracking of asset locations across multiple facilities and sites simultaneously.
Over-the-Air (OTA) Updates
Supports remote firmware and software updates, ensuring the system always has the latest features and security patches without manual intervention.
Seamless ERP & IoT Integration
Features a flexible REST API that syncs instantly with SAP, Oracle, Tally, and Microsoft Dynamics to automate accounting and logistics workflows.
Cloud-Based Analytics
Offers interactive dashboards for actionable insights, demand forecasting, and predictive maintenance.
Product Images

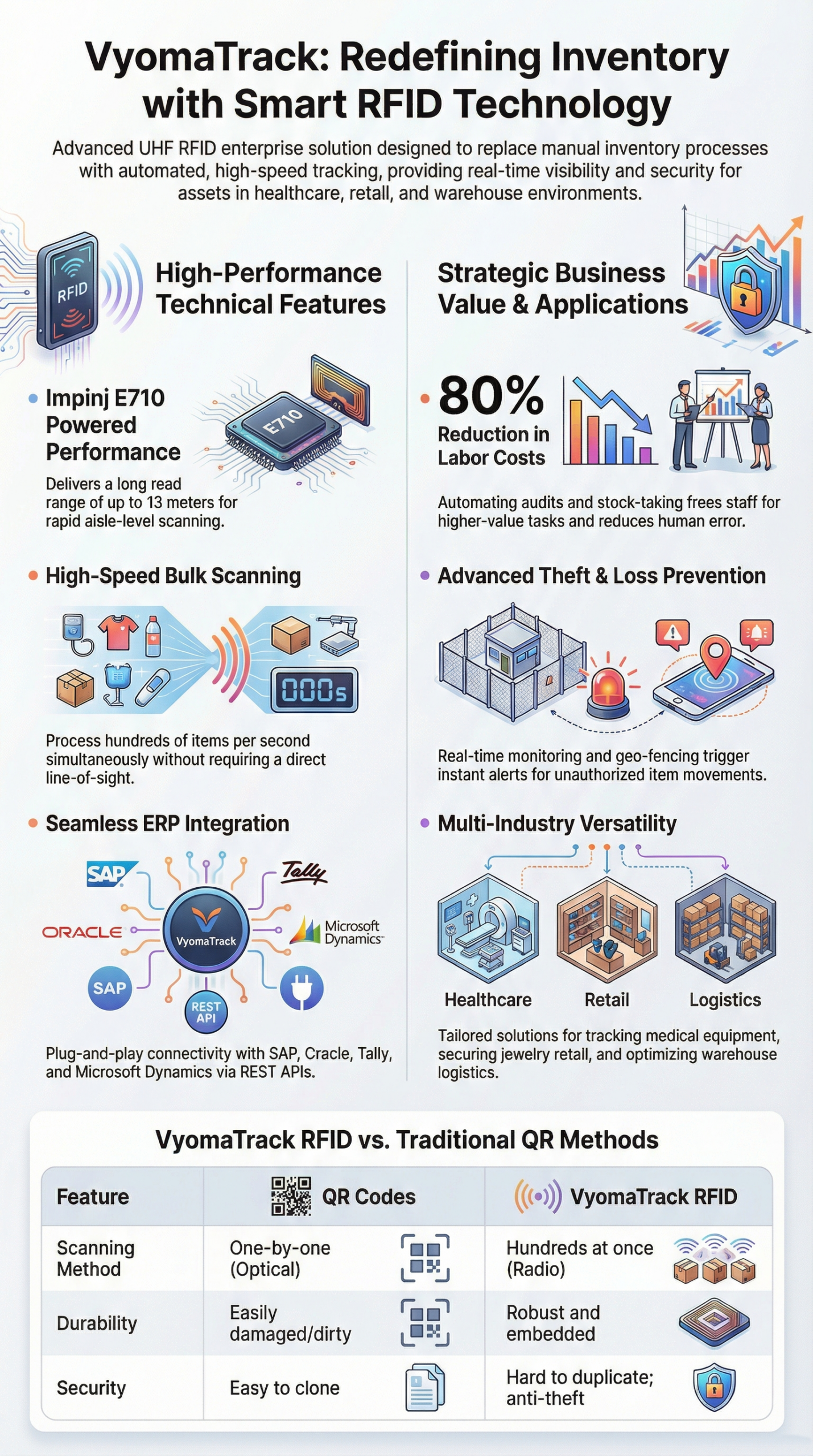

VyomaTrack System Overview
Vyoma-E710 RFID Reader Module
System Specifications
Accuracy
Read Range
Tags/Second
Labor Savings
Core Technology Stack
| Component | Specification |
|---|---|
| Core Reader Technology | Integrated with the Impinj E710 high-performance chip for superior read sensitivity and speed |
| Tag Technology | Premium UHF RFID labels (Alien Higgs 9 and NXP UCODE 9xe) |
| Read Range | Up to 13 meters (aisle-level scanning capability) |
| Accuracy | Over 99% for inventory control and asset monitoring |
| Connectivity | Dual-band WLAN and Ethernet interfaces |
| Hardware | Mobile handheld readers, wireless HMI devices with multi-touch control |
| Security | Factory-locked unique IDs, kill/access passwords, and built-in error correction |
Vyoma-E710 RFID Module Technical Specifications
The VyomaTrack system is powered by the Vyoma-E710 UHF RFID module featuring the Impinj E710 chipset with eight antenna ports.
| Parameter | Specification |
|---|---|
| Model | Vyoma-E710 |
| Chipset | Impinj E710 |
| Frequency | 902~928MHz (US) / 865~868MHz (EU) |
| Protocol | ISO18000-6C (EPC GEN2) |
| RF Power | 33dBm (adjustable) |
| Receive Sensitivity | ≤-86 dBm |
| Inventory Speed | 800+ tags/second |
| Work Mode | Answer mode / Real-time inventory mode |
| Read Distance | 0~10m (depends on antenna and tag) |
| Power Supply | 12V DC (min 3Amps) |
| Interface | RS485, LAN, Wi-Fi |
| Antenna Ports | Eight antenna ports with SMA connectors |
| GPIO | 2 input and 2 output |
| Firmware Upgrading | Supported |
| Operation Temperature | -20~+55°C |
| Storage Temperature | -40~+85°C |
| Dimensions | 200mm × 175mm × 40mm |
| Weight | 128g |
Antenna Interface
Connector Type: SMA Female head (8 ports)
Why VyomaTrack Should Be Used
VyomaTrack provides a strategic advantage for businesses looking to move beyond the limitations of manual processes and QR codes:
Key Business Benefits
- ✓Significant Labor Savings: Reduces manual labor costs by up to 80% by automating stock takes that previously took days into minutes
- ✓Proven ROI: While the initial investment is higher than traditional methods, it pays for itself through the elimination of human error, prevention of asset loss, and optimized working capital
- ✓Risk & Compliance Management: Automated, tamper-proof audit trails simplify regulatory adherence for industries like pharmaceuticals and food safety
- ✓Scalability: Designed to grow with the enterprise, allowing for effortless expansion across new sites and product lines without IT bottlenecks
- ✓Theft Protection: Integrated readers at exits trigger real-time alerts for unauthorized movement, protecting high-value assets
Application Cases
VyomaTrack is a versatile solution tailored for high-stakes environments:
Warehouse & Logistics
Accelerating workflows from receiving to shipping and enabling real-time batch and serial tracking.
Healthcare
Improving patient safety via RFID wristbands for instant medical history access and tracking critical portable medical equipment to reduce downtime.
Jewelry & Luxury Retail
Securing high-value items with discreet tags that trigger anti-theft alerts while building brand trust through authenticity verification.
Manufacturing
Monitoring temperature-sensitive items and managing hazardous materials with automated alerts and precision tracking.
Inventory Management
Eliminating stockouts and overstock by maintaining a 100% digital, real-time record of all inventory levels.
